Maestro user guide

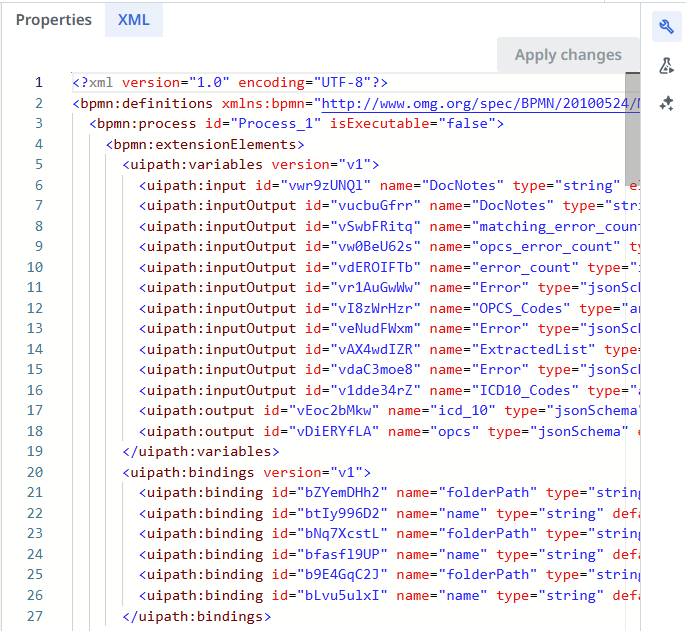

Next to the Properties tab, that you use for configuration, you can find the XML tab, used primarily for support purposes.
If you want to know the supported elements in the BMPN XML, check out BPMN Specification - Business Process Model and Notation.
- Name - the label you see on the canvas
- ID - the system generated unique ID. This is the value used to reference the element in other properties and expressions
- Description - additional details for the element
Type specific details for the selected element, such as Start and wait for automation or Start and wait for agent for a Service Task element.
Outputs for the selected element. These outputs will be available as variables, and you can use them within expressions in other elements.
Configuring Start event inputs and End event outputs enables you to populate input arguments when initiating the process from the Orchestrator interface or API. This also allows you to return output to any aforementioned sources.
