Studio Web user guide

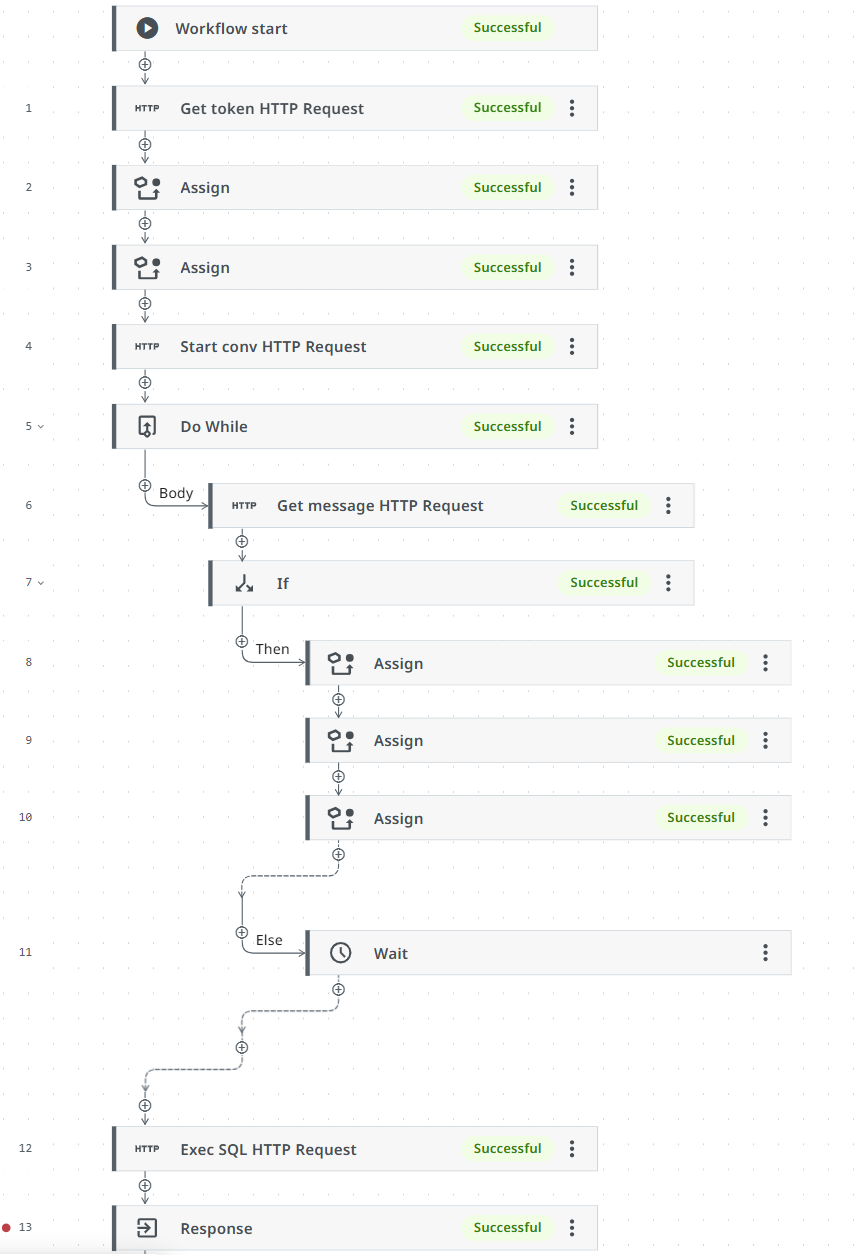

• Initializes variables—Sets up necessary parameters like tokens, URLs, and IDs.

• Gets a token—Makes an HTTP POST request to obtain an access token for authentication.

• Starts a conversation—Sends the user question to the Genie API to initiate a conversation.

• Polls for message completion—Enters a Do While loop to repeatedly check the status of the Genie message until it is COMPLETED.

• Retrieves query results—Once the message is complete, it fetches the final query results from the Genie API and provides the retrieved data as the workflow output.



Prerequisites​

1. Create an API workflow.

2. Define workflow inputs. Open Data manager and add a new Inputs parameter with the following configuration:

   • Name—Question
   • Type—String
   • Mark it as Required.

3. Define workflow variables. Open Data manager > Variables, and add the following:

   • token (String)—Stores the authentication token required to access the Databricks Genie API.
   • conversation_id (String)—Tracks a specific conversation session with the Databricks Genie API. When you start a conversation, the API provides this ID, and you use it to refer to that ongoing conversation in subsequent requests.
   • message_id (String)—Refers to a specific message within a conversation. This ID is then used to retrieve the status and eventually the results of that particular message processing.
   • attachment_id (String)—Points to a specific attachment (which in this case holds the query result) associated with a message in the Genie API.
   • url (String)—Stores the base URL for the Databricks Genie API endpoint.
   • space_id (String)—Points to a specific space within Databricks Genie.

4. Add a HTTP activity to retrieve the access token and configure it as follows:

   • Display name—"Get token HTTP Request"
   • Method—POST
   • Request URL—https://accounts.cloud.databricks.com/oidc/accounts/{account_id}/v1/token
   • Headers—
     assignment

     {
     "Authorization": "Basic <your_basic_token>",
     "Content-Type": "application/x-www-form-urlencoded"
     }
     {
     "Authorization": "Basic <your_basic_token>",
     "Content-Type": "application/x-www-form-urlencoded"
     }


   • Request body—
     assignment

     "grant_type=client_credentials&scope=all-apis"
     ```The context output name for this activity is `HTTP_Request_1`.
     "grant_type=client_credentials&scope=all-apis"
     ```The context output name for this activity is `HTTP_Request_1`.


5. Assign the token retrieved from the previous activity to your token variable. Add an Assign activity and configure it as follows:

   • To variable—token
   • Set value—$context.outputs.HTTP_Request_1.content.access_tokenThe context output name HTTP_Request_1 may differ from the one used in your workflow.

6. Add a HTTP activity to start the conversation and configure it as follows:

   • Display name—"Start conversation HTTP Request"
   • Method—POST
   • Request URL—https://{your-databricks-instance}/api/2.0/genie/spaces/{space_id}/start-conversation, or build it with the Expression editor as
     assignment

     $context.variables.url + "/api/2.0/genie/spaces/"+ $context.variables.space_id +"/start-conversation"
     $context.variables.url + "/api/2.0/genie/spaces/"+ $context.variables.space_id +"/start-conversation"


   • Headers—
     assignment

     {"Authorization": "Bearer " + $context.variables.token}
     {"Authorization": "Bearer " + $context.variables.token}


   • Request body—
     assignment

     {"content": $workflow.input.question}
     {"content": $workflow.input.question}


   Ensure the output is saved. You can retrieve conversation_id and message_id from the output of this activity. The context output name for this activity is HTTP_Request_2.

7. Enter a loop to check the status of the Genie message until COMPLETED. Add a Do While activity and set the Condition to $context.outputs.HTTP_Request_3?.content?.status !== "COMPLETED", where HTTP_Request_3 refers to the Get message HTTP Request activity. This means the loop continues as long as the message status is not COMPLETED.

8. Inside the Do while loop:

   1. Add a HTTP activity for getting the last message and configure it as follows:
      • Display name—"Get message HTTP Request"
      • Method—GET
      • Request URL—https://{your-databricks-instance}/api/2.0/genie/spaces/{space_id}/conversations/{conversation_id}/messages/{message_id}, or build it with the Expression editor as
        assignment

        [ $context.variables.url+"/api/2.0/genie/spaces/"+$context.variables.space_id+"/conversations/", $context.outputs.HTTP_Request_2.content.conversation_id, "/messages/", $context.outputs.HTTP_Request_2.content.message_id ].join('')
        [ $context.variables.url+"/api/2.0/genie/spaces/"+$context.variables.space_id+"/conversations/", $context.outputs.HTTP_Request_2.content.conversation_id, "/messages/", $context.outputs.HTTP_Request_2.content.message_id ].join('')


   Where HTTP_Request_2 refers to the Start conversation HTTP Request activity.

   • Headers—
     assignment

     {"Authorization": "Bearer " + $context.variables.token}
     {"Authorization": "Bearer " + $context.variables.token}


   • Request body—
     assignment

     {"content": $workflow.input.question}
     ```The context output name for this activity is `HTTP_Request_3`.
     {"content": $workflow.input.question}
     ```The context output name for this activity is `HTTP_Request_3`.


   2. Add an If activity immediately after the Get message HTTP Request acitvity, and set the Condition to $context.outputs.HTTP_Request_3?.content?.status === "COMPLETED", where HTTP_Request_3 refers to Get message HTTP Request activity.
   3. On the Then (true) branch, add an Assign activity and configure it as follows:
      • To variable—conversation_id
      • Set value—$context.outputs.HTTP_Request_3.content.conversation_id, where HTTP_Request_3 refers to Get message HTTP Request activity.
   4. Add another Assign activity:
      • To variable—message_id
      • Set value—$context.outputs.HTTP_Request_3.content.message_id, where HTTP_Request_3 refers to Get message HTTP Request activity.
   5. Add another Assign activity:
      • To variable—attachment_id
      • Set value—$context.outputs.HTTP_Request_3.content.attachments[0].attachment_id, where HTTP_Request_3 refers to Get message HTTP Request activity.
   6. On the Else branch, add a Wait activity and set duration to one second. This instructs the workflow to wait for a short period before retrying.

9. Exit the loop and add a HTTP activity to execute the SQL query and configure it as follows:

   • Display name—"Execute SQL HTTP Request"
   • Method—GET
   • Request URL—https://{your-databricks-instance}/api/2.0/genie/spaces/{space_id}/conversations/{conversation_id}/messages/{message_id}/attachments/{attachment_id}/query-result, or build it with the Expression editor as
     assignment

     $context.variables.url+"/api/2.0/genie/spaces/"+$context.variables.space_id+"/conversations/" + $context.variables.conversation_id + "/messages/"  + $context.variables.message_id + "/attachments/" +  $context.variables.attachment_id + "/query-result"
     $context.variables.url+"/api/2.0/genie/spaces/"+$context.variables.space_id+"/conversations/" + $context.variables.conversation_id + "/messages/"  + $context.variables.message_id + "/attachments/" +  $context.variables.attachment_id + "/query-result"


   • Headers—
     assignment

     {"Authorization": "Bearer " + $context.variables.token}
     ```The context output name for this activity is `HTTP_Request_3`.
     {"Authorization": "Bearer " + $context.variables.token}
     ```The context output name for this activity is `HTTP_Request_3`.


10. Define workflow outputs. Open Data manager and add the following Inputs parameters:

    • Name—row_count
    • Type—Number
    • Mark it as Required.and
    • Name—data_array
    • Type—Array
    • Mark it as Required.

11. Add a Response activity and configure it as follows:

    • Response—
      assignment

      {
        "row_count": -75647404.57028332,
        "data_array": [
          [],
          [],
          [
            "ut et aute officia",
            "ex ut",
            "nisi non ut Lorem velit",
            "aliquip Duis consectetur irure id"
          ]
        ]
      }
      {
        "row_count": -75647404.57028332,
        "data_array": [
          [],
          [],
          [
            "ut et aute officia",
            "ex ut",
            "nisi non ut Lorem velit",
            "aliquip Duis consectetur irure id"
          ]
        ]
      }


12. Run the integration. Once deployed, the Workflow can be invoked with any natural language query. An example question could be : "Are there any restrictions to ship SKU ENB-SP-200 to Cuba?"

1. Simple setup – API Workflow provides a fast way to connect Genie without custom code.
2. Consistent schema – Genie responses are JSON-based, easy to parse into UiPath.
3. Scalable integration – Responses can be used in Apps, long-running workflows, or orchestrations.
4. Rapid prototyping – Setup for working automation takes minutes, allowing quick validation of use cases.
