Workflow activities

• Basic
• Advanced
• Layout
• Data.

Basic Components​

Text Field​

Text Area​

Number​

• Use Thousands Separator - separates thousands with a comma.
• Require Decimal - always shows decimals, even if 0.
• Decimal Places - sets the maximum number of decimals displaying.

Password​

Checkbox​

Select Boxes​

Label/Header​

File/Folder Path​

• Label Size - choose a size or type for the Label/Header component from the dropdown list.

1. Click the Select button of the File/Folder path component. The File Control window opens.
2. Select a file.
3. Click Open in the File Control window.

1. Click the Select button of the File/Folder path component. The Browse For Folder window opens.

2. Select a folder.

3. Click OK in the Browse For Folder window.

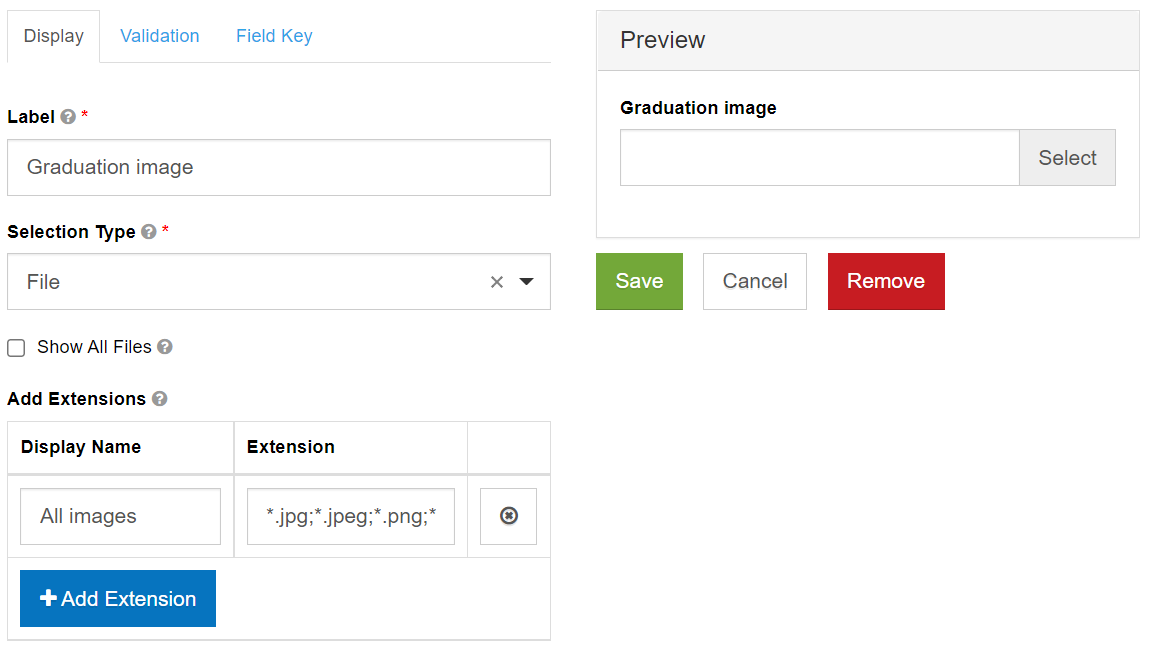

• Selection Type - choose the type of path users can select: File or Folder.

• Show All Files - when checked, users can select any file type from the File Control. When left unchecked, the Add Extensions section is displayed, where you have to manually choose what type of files the users can select in the File Control.



Drop-down List​

• Widget Type - select the type of widget you want to use.

• Data Source Values - input the values that appear in the dropdown list. The Label column is the value visible to users. The Value column is the name stored in the data.



• Item Template - HTML template that allows you to control the way values are displayed in the dropdown list. You can access the values in the dropdown list, through the item variable. For example, use item.label to access a certain value in the dropdown list

• Refresh Options On - refreshes data when another field changes.

• Refresh Options On Blur - refreshes data when another field is blurred.

• Clear Value on Refresh Options - clears the components value when the Refresh On Field option is changed.

• Read Only Value - only show the value when in Read-Only mode.

• Choice.js options - input raw JSON object to use as options for the Select component.

• Use exact search - disables search algorithm threshold.

• Custom Default Value - create a custom default value using JavaScript or JSONLogic.

Radio​

• Values - input the values that appear in the list. The Label column is the value visible to users. The Value column is the name stored in the database.

Button​

• Action - select the action you want the button to perform:
  • Submit - submits the form, and runs the Do block.
  • Click - performs the click operation, and runs the Do block.
  • Reset Form - resets the form fields.
  • Event - when a user clicks the button, a certain event starts running. When selecting Event you need to input the event in the Button Event field.
• Reset Data from DO block - when checked for Click type buttons, it sets the data that is received from the Do block. Helps increase performance when the data found on other pages is not on the current page.
• Theme - choose the color theme of the button from the drop-down list.
• Size - choose the size of the button from the drop-down list.
• Block Button - stretches to the full width of the bounding container.
• Left / Right Icon - add the full icon class string, to show a specific icon. For example, you can add fa fa-plus.

Advanced Components​

HTML Element​

• HTML Tag - The tag of the HTML Element.
• CSS Class - The CSS Class that can be added for this HTML Element. You can input multiple classes, by separating them with single spaces.
• Attributes - The attributes for the HTML Element. Only safe attributes are allowed, such as: src, href, and title.
• Content - the content of the HTML Element.
• Refresh On Change - re-renders the HTML Element whenever a value changes in the form.

• Displaying Images.
• Displaying PDF Files.

Content​

• Refresh On Change - renders the Content component each time a value in the form changes.

Email​

Phone Number​

• Input Mask - Provides a predefined format for the phone number. For the phone number field, the default format is (999) 999-9999.
• 9 - numeric
• a - alphabetical
• * - alphanumeric
• Input Mask Placeholder Char - You can use a character as a placeholder in the field.
  Note:

  The placeholder character gets replaced by a space if it is used inside the mask.

Date/Time​

• Format - the format used for displaying the datetime value.

• Enable Date Input - allows users to input dates for this field.

• Use Input to add moment.js for minDate - enables the user to use an input for minDate moment function, instead of a calendar.

• Use calendar to set minDate - enables the user to use a calendar to set the minDate.

• Use Input to add moment.js for maxDate - enables the user to use an input for maxDate moment function, instead of a calendar.

• Use calendar to set maxDate - enables the user to use a calendar to set the maxDate.

• Disable specific dates or dates by range - add dates that you want to ban. For example, 2027-08-11.

• Custom Disabled Dates - allows you to ban certain dates using a customized function.

• Disable weekends - allows you to ban weekends.

• Disable weekdays - allows you to ban weekdays.

• Enable Time Input - allows users to input time for this field.

• Hour Step Size - the number of hours that have to be incremented or decremented in the time picker.

• Minute Step Size - the number of minutes that have to be incremented or decremented in the time picker.

• 12 Hour Time (AM/PM) - displays time in 12 hour periods, using AM or PM.

• Default Date - sets the default value to a specific date using Moment.js functions. For example, you can use the following function: moment().substract(10, 'days').



Day​

• Type / Type of input - choose to give input for Day, Month, or Year either by typing in a number or by selecting options from a dropdown list.

• Require Day - the Day field must be filled in before the form renders.

• Require Month - the Month field must be filled in before the form renders.

• Require Year - the Year field must be filled in before the form renders.

• Maximum / Minimum Day - choose a minimum / maximum day that can be entered. You can also use Moment.js functions. For example, you can use moment().add(10, 'days').



Time​

• Input Type - select the type of widget you would like to use for inputting time: HTML5 Time Input (users can choose the time from a given panel) or Text Input with Mask (users can manually input the time).

Currency​

• Currency - choose a certain currency from the drop-down list.

Survey​

• Questions - add the questions that the users should answer.
• Values - add the options that the user can select per question.

Layout components​

Columns​

• Column Properties - add columns to the component and configure them, by adjusting their Width, Offset, Push and Pull properties. After configuring the columns' layout, you can drag and drop other components into the Columns component.
• Auto adjust columns - automatically adjusts columns, if there are hidden nested components.

Panel​

• Theme - choose the theme of the panel from the dropdown list. The Bootstrap class is added to the wrapper div.
• Collapsible - allows you to collapse the panel.
• Initially Collapsed - the property is available only when Collapsible is checked. Collapses the panel when the form has loaded.

Table​

• Number of Rows / Columns - enter the numbers of rows or columns that you want to be displayed in the table.
• Clone Row Components - clones the components inside rows and adds them in the remaining rows, too. You can use it when creating tables with multiple rows, that contain the same content.
• Cell Alignment- choose the horizontal alignment of the cells in the table.
• Striped - adds striped shading to rows.
• Bordered - adds visible borders to the table.
• Hover - highlights row when hovering the mouse over it.
• Condensed - condenses the size of the table.

Tabs​

Data​

Hidden​

Container​

{
    data: {
      financialPerformance {
        grossProfitMargin: "0.83",
      netProfitMargin: "0.43"
      }
   }
}
{
    data: {
      financialPerformance {
        grossProfitMargin: "0.83",
      netProfitMargin: "0.43"
      }
   }
}

Data Grid​

• Disable Adding / Removing Rows - hides the buttons that allow adding or removing rows when the form renders.
• Allow Reorder - reorder rows by dragging and dropping them.
• Equal Column Width - makes the widths of columns equal.
• Enable Row Groups - allows separating rows into groups. Add groups, label them, and select the rows for each group.
• Initialize Empty - the Data Grid will have no visible rows when initialized.

Edit Grid​

• Open First Row when Empty - opens the first row when the Edit Grid is empty.
• Disable Adding / Removing Rows - hides the buttons that allow adding or removing rows when the form renders.
• Add Another Text - changes the name of the Add Another button.
• Save Row Text - changes the text of the Save Row button.
• Remove Row Text - changes the text of the Remove Row button.

• value - the array of row data.
• components - the array of components in the grid.

• row - object of one row's data.
• components - the array of components in the grid.
• state - current row's state (draft/saved).

• value - the array of row data.
• components - the array of components in the grid.

Grid​

• Sortable - sort data inside columns in ascending or descending order. You sort the data at runtime, in Form Renderer.

• Filterable - filter data inside each column. Filter the data at runtime, in Form Renderer.

• Column(s) Resizable - change the width of the columns at runtime, in Form Renderer. The Column(s) Resizable capability allows you to see the data inside columns better.

• Pagination - display the data of the Grid (Preview) component on pages that are numbered. The pagination capability also includes setting the number of items per page.



Comparison between grid control components​
